WLP Wireless Load Cell &Position

WLP Wireless Load Cell &Position

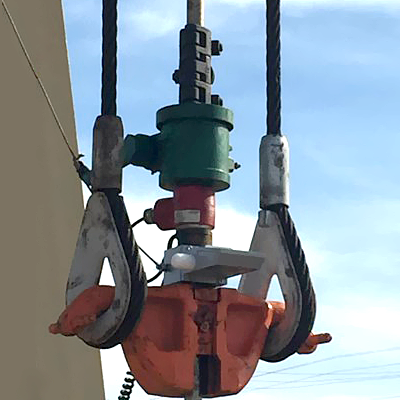

The Bright Integrated Wireless Load Cell/Accelerometer is the comprehensive field solution that accurately measures and monitors both load and position in a single wireless unit. Featuring a compact, all-in-one design for improved convenience, reliability and accessibility, this integrated unit is fully solar powered and easily maintained.

The receiving module’s standard output for load and range offers a convenient replacement option for conventional systems. Data is transmitted via a 2.4GHz digital channel for real-time system updates. In addition to reduced installation time, long-term service and maintenance costs are significantly reduced over the life of the system.

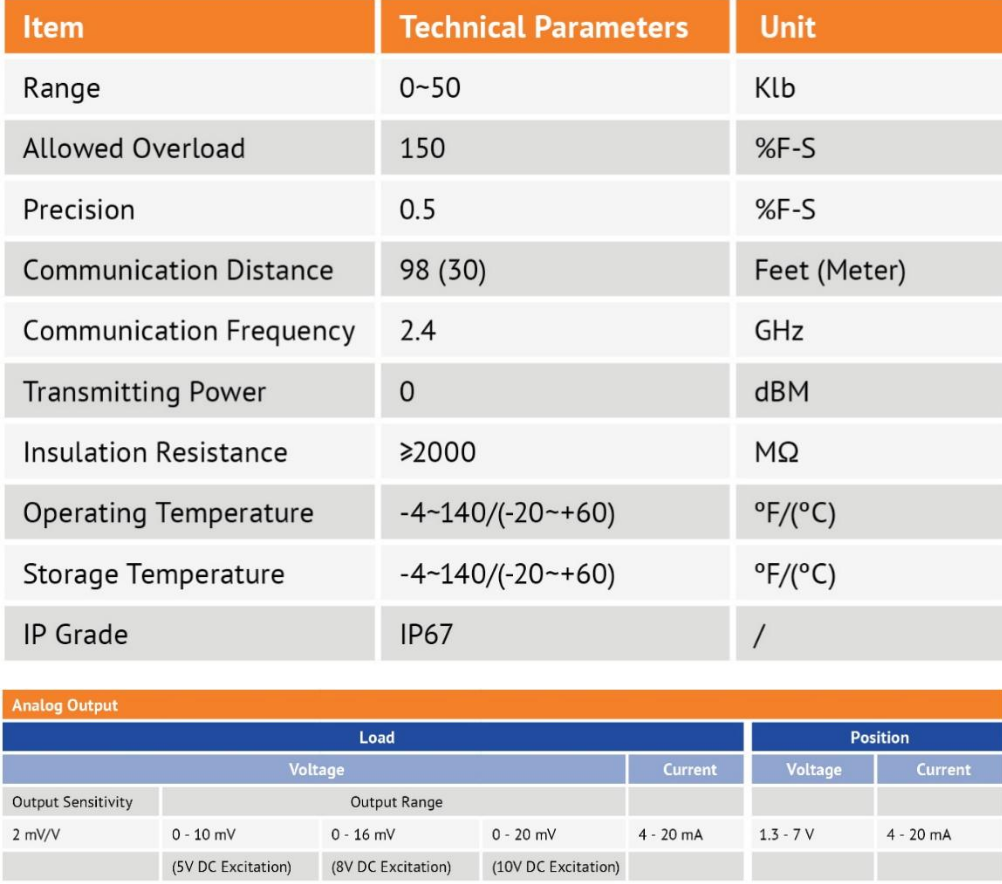

·    Completely solar powered with battery backup

·    Standard output (load): 4-20mA or 0-10mV

·    Standard output (range): 4-20mA or 1.3-7V

·    Transmits data via 2.4GHz digital channel


·    Integrated measuring and monitoring system

·    Compact, space-saving design

·    Greatly reduces cable failure risk

Download:WLP Wireless Load Cell &Position_Brochure
